Parameters

• Model number

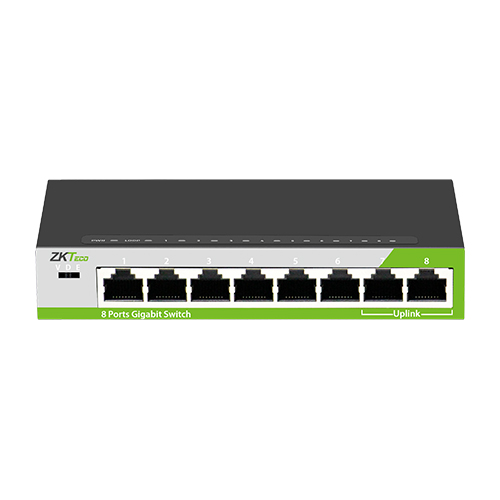

  E062-16-G

• Port

  8*10/100/1000M RJ-45

• Switching Capacity

  16Gbps

• Forwarding Rate

  11.9Mpps

• Internal Cache

  2.5M

• MAC Address Table

  1K

• Jumbo Frames

  2Kbytes

• Forwarding Mode

  Store-and-Forward switching

• MTBF

  100000 hours

• Standards

  IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

  10Base-T: Cat3/Cat4/Cat5/Cat5e UTP/STP(≤100m)
  100Base-TX : Cat5/Cat5e UTP/STP(≤100m)
  1000Base-TX : Cat5/Cat5e UTP/STP(≤100m)

• Working Mode

  VLAN (Port Isolation):Ports 1 to 6 in isolation group cannot communicate with each other
  Default (Standard Mode): Support loop alarm
  Extend (Link Extension): Ports 1 to 6 support the work on 10/100/1000 Mbps speed based on their connection to the other end, and still reach up to 250 m transmission on 10Mbps

• Power Supply

  Adapter input voltage: AC 100-240 V
  Switch input voltage: 5V1A

• General

• Operating Temperature

  -10~50°C

• Storage Temperature and Humidity

  Storage Temperature: -40~70°C
  Storage Humidity: 5%~90%, non-condensing

• Operating Humidity

  10%~90%, non-condensing

• Dimensions (L*W*H)

  137*77*25(mm)

• Package Dimension (L*W*H)

  175*120*63(mm)

• Net Weight

  0.3kg

• Gross Weight

  0.5kg

Download

(Silver and above members can download after logging in)

• Name
• Type
• Size
• Update Time

• PDF

  E062-16-G_Datasheet_20251209.

  Datasheet

  108.58KB

  2025-12-26

  Download
