Parameters

• Model

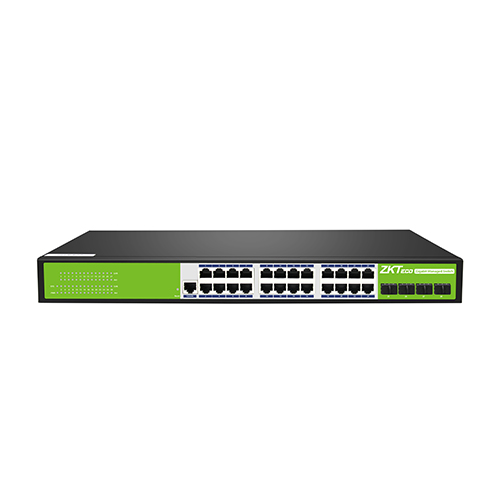

  E244S-48-M-G

• I/O Interface

• Power

  AC INPUT 100-240V

• Ethernet

  24*Gigabit Ethernet Ports
  4*Gigabit SFP Ports
  1*Console Port

• Performance

• Switching Capacity

  56Gbps

• Packet Fowarding Rate

  41.66Mpps

• Packet Buffer

  4Mbit

• Flash Memory

  16MByte

• DDR SDRAM

  128MByte

• MAC Address

  8K

• VLANs

  4096

• Jumbo Frame

  9.6Kbytes

• Transfer Mode

  Store and Forward

• MTBF

  100,000 hours

• Standard

• Network Protocol

  IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE802.3x, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1AB, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X

• Optical Medium

  Multi-mode fiber: 50/125, 62.5/125, 100/140um
  Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um

• Industry Standard

  EMI: FCC Part 15 CISPR (EN55032) class A
  EMS: EN61000-4-2 (ESD)
  EN61000-4-5 (Surge)

• Network Medium

  10Base-T: Cat 3, 4, 5 or above UTP(≤100m)
  100Base-TX: Cat 5 or above UTP(≤100m)
  1000Base-TX: Cat 5 or above UTP(≤100m)

• Certifications

• Safety certificate

  CE, FCC, RoHS

• Environmental

• Working Environment

  Operating Temperature: -10~50°C
  Storage Temperature: -40~70°C
  Operating Humidity: 10%~90%, non-condensing
  Storage Temperature: 5%~95%, non-condensing

• Function Indicator

• Indicator

  PWR(Power Indicator), SYS(System Light), Link/Act(Link & Data)

• PWR

  On: Powered On
  Off: Powered Off

• SYS

  Off: System Off
  On: System On

• Link / ACT

  On: No Data
  Flashing: Data Transmit
  Off: Link Connection Blocked

• Physical Specification

• Structure Size

  Product Size: 440*204*44mm
  Package Size: 500*290*85mm
  Product N. W: 2.45kg
  Product G. W: 3.06kg

• Power Voltage

  Machine Input Voltage: AC 100-240V
  Built-in power output: DC12V3A
  Total Power ＜ 36W

• Package List

  Switch: 1PCS, Power cable: 1PCS, Serial cable: 1PCS, Instruction manual: 1PCS,
  Certificate of quality: 1PCS, Warranty card: 1PCS, Mounting ear: 1 Pair

• L3 Function

• IPv4

  IPv4 VLAN Interface, IPv4 Static Routes, ARP

• IPv6

  IPv6 VLAN Interface, IPv6 Static Routes, IPv6 ND

• L2 Function

• Port

  Port Switch, Port Description, Port Speed, Port Duplex, Port Flow Control, Jumbo(Up to
  10K), EEE, Fiber Module(DDM)

• Link Aggregation

  Supports load balance policy, Base on MAC and IP-MAC, Static and Dynamic Group, Supports LACP, Up to 8 groups

• Storm Control

  Broadcast, Unknown Multicast, Unknown Unicast

• Port Mirroring

  One to one monitor, Many to one monitor, Ingress/Egress/Both, Up to 4 session groups

• Port Security

  MAC Address Constraints, Port Security MAC Address, Protect/Restrict/Shutdown

• VLAN

  Access/Trunk/Hybrid, VLAN Tunnel (Q-in-Q Tunnel), Congurable VID from 1 - 4094; Max.
  256 static VLAN groups, Voice VLAN, MAC VLAN, Surveillance VLAN, Protocol VLAN, GVRP

• Spnning Tree Protocol

  STP/RSTP/MSTP, BPDU Filter, BPDU Guard, Edge Port

• LLDP

  LLDP, LLDP MED

• Multicast

  IGMP Snooping, IGMP V1/V2/V3, Router Port, Static IGMP group address, IGMP groups
  filtering, Querier, MLD Snooping, MVR

• Quality of Service (QoS)

  Traffic classification based, Strict priority and WRR, Port Priority, 802.1P Priority, IP TOS
  Priority, IP DSCP Priority, Supports up to 8 queues per port, Priority Remarking

• Services

• DHCP

  DHCP Server, IP Pool, Static Binding, DHCP Relay

• Access Protocol

  HTTP, HTTPS, Telnet, SSHv2, Manager ACL, Session Timeout, Password Retry Count, Silent Time

• Security

• AAA

  RADIUS, TACACS+, 802.1X, Base on port/MAC/local/WEB

• DHCP Snooping

  Global/VLAN, Option 82, Circuit ID

• ACL

  MAC ACL, IPv4 ACL, IPv6 ACL

• Diagnostics

• Syslog

  Logging Message, Remote Server

• Management

• Manager Access

  Console, HTTP/HTTPS, Telnet, SSH, SNMP

• Manager IP

  Static Address, DHCP Client, Supports IPv4 and IPv6 address, Manager VLAN, DNS

• Time Synchronization

  SNTP, Manual Time

• SNMP

  V1/V2C/V3, Community, V3 User, Group, Trap Host

• SNMP MIB

  RFC 1213 MIB-II, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2819 RMON MIB
  (Groups 1, 2, 3 and 9), RFC 2863 Interface MIB, LLDP, Private MIB

• RMON

  Statistics, History, Event, Alarm
