Parameters

• Model number

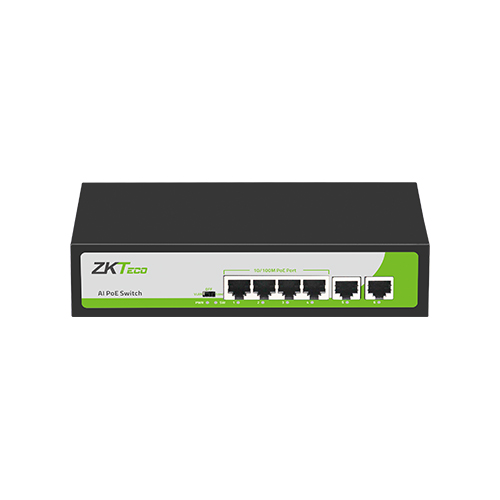

  PE042-55-C

• Port

  4*10/100M RJ-45(POE) +2*10/100M RJ-45

• Network Protocol

  IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at

• POE Standard

  IEEE802.3af /IEEE802.3at

• PoE Consumption

  Max 15.4 W (IEEE 802.3af )/30 W (IEEE 802.3at)

• PoE Compatibility

  IEEE 802.3af/at self-adaptation

• Output Voltage

  DC48V

• PoE Power Supply

  1,2+ ; 3,6-

• Network Cable

  10Base-T: Cat3 UTP/STP(≤100m)
  10Base-T: Cat6a UTP/STP(≤250m)
  100Base-TX: Cat5e UTP/STP(≤100m)

• Backplane Bandwidth

  1.2Gbps

• Packet Forwarding Rate

  Each port 0.1488Mpps

• Buffer Memory

  448K

• MAC Size

  1K

• Switching

  Store-and-Forward

• Power Supply

  AC110-260V input 52V1.25A output(Built-in power supply)

• Light Indicator

  PWR: Power indicator light: On: Power-on
  PWR: Power indicator light: Off: Power- off

  SW: Dial light: Off: Normal mode
  SW: Dial light: On: VLAN mode
  SW: Dial light: Flash: Extend mode

  1-6: Link light: On: Link connection
  1-6: Link light: Flash: Data transfer
  1-6: Link light: Off: Link failure

• Environment

  Operating Temperature: -20°C to 55°C
  Storage Temperature: -40°C to 80°C
  Operating Humidity: 10% to 90%, non-condensing
  Storage Humidity: 5% to 90%, non-condensing

• Dimensions (L*W*H)

  200*120*45 (mm)

• Net Weight

  0.5kg

• MTBF

  100,000 hours
