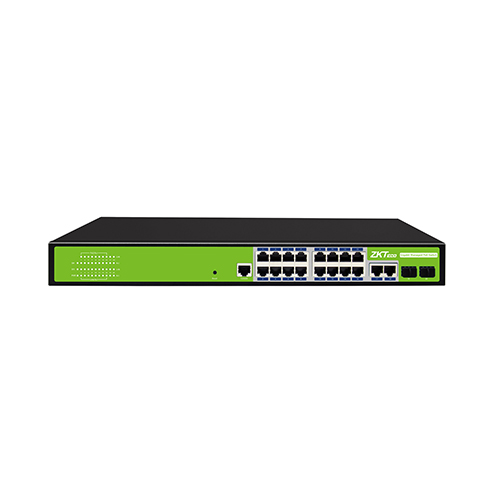

PE162S-300-M-G

• 16*10/100/1000Mbps auto-sensing POE Ports, 2*10/100/1000Mbps Ethernet Uplink Ports, 2*Gigabit SFP Uplink Ports, 1*Console Port;

• Support IEEE802.3/IEEE802.3i/IEEE802.3u/IEEE802.3ab/IEEE802.3z;

• Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);

• Ethernet port supports 10/100/1000M adaptive;

• Panel indicator monitoring the status and help failure analysis;

• Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication;

• Support WEB, TELNET, CLI, SSH, SNMP, RMON management;

• Surge Protection: Common mode 6KV, Differential 2KV(level B), ESD 8KV air, 6KV contact(level C).

Parameters

Model

PE162S-300-M-G
I/O Interface
Power

Input: AC 100-240V, 50-60Hz
Ethernet

16*10/100/1000Mbps PoE Ports
2*10/100/1000Mbps Uplink Ports
2*1000Mbps SFP Ports
1*RJ45 Console Port
Performance
Switching Capacity

40Gbps
Packet Forwarding Rate

29.76Mpps
Packet Buffer

4Mbit
Flash Memory

16MByte
DDR SDRAM

128MByte
MAC Address

8K
Jumbo Frame

10Kbytes
VLANs

4096
Standard
Network Protocol

IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1q, IEEE 802.1x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w
Protocol

PoE Protocol: IEEE802.3af (15.4 W), IEEE802.3at (30 W)
Industry Standard

EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Network Medium

10BASE-T: Cat3, 4, 5 or above UTP(≤100 M)
100BASE-TX: Cat5 or above UTP(≤100 M)
1000BASE-TX: Cat5 or above UTP(≤100 M)
Safety certificate

CE, FCC, RoHS
Environment
Operating Temperature

-10 to 50°C
Storage Temperature and Humidity

-40 to 70°C
Operating Humidity

10% to 90%, non-condensing
Storage Humidity

5% to 95%, non-condensing
Function Indication
Indicator

PWR, SYS, PoE/ACT, Link/ACT
PWR

Lighting: Powered, Un-Light: No Power
SYS

Flashing: System Start-up, Lighting: System Running
PoE/ACT

Lighting: PoE on, Un-Light: PoE off
Link/ACT

Lighting: Link connection, Flashing: Data transmission, Un-Light: Link disconnect
Preset

Short press restart, long press 5 seconds to restore factory Settings
Physical Specification
Structure Size

Product Dimensions: 440*204*44mm
Package Dimensions: 500*290*85mm
Product N.W: 2.65KG (200W) / 2.78KG (300W)
Product G.W: 3.31KG (200W)/ 3.44KG (300W)
Power Voltage

Input Voltage: AC100-240V/50-60Hz
Power Supply: 52V 3.84A / 52V5.76A
Power Consumption

Product Power: maximum 15W / maximum 15W
POE Power: maximum 180W / maximum 280W
Package List

Ethernet switch: 1 Set, Instruction manual: 1 PCS, Certificate, warranty card: 1 PCS, Power
cord: 1PCS, Serial cable: 1PCS, Rack ear: 1 Pairs
L3 Function
IPv4

IPv4 VLAN Interface, IPv4 Static Routes, ARP
IPv6

IPv6 VLAN Interface, IPv6 Static Routes, IPv6 ND
L2 Function
Port

Port Switch, Port Description, Port Speed, Port Duplex, Port Flow Control, Jumbo(Up to
10K), EEE, Fiber Module(DDM)
Link Aggregation

Supports load balance policy; Base on MAC and IP-MAC, Static and Dynamic Group,
Supports LACP, Up to 8 groups
Storm Control

Broadcast, Unknown Multicast, Unknown Unicast
Port Mirroring

One to one monitor, Many to one monitor, Ingress/Egress/Both, Up to 4 session groups
Port Security

MAC Address Constraints, Port Security MAC Address, Protect/Restrict/Shutdown
VLAN

Access/Trunk/Hybrid, VLAN Tunnel (Q-in-Q Tunnel), Congurable VID from 1 - 4094; Max.
256 static VLAN groups, Voice VLAN, MAC VLAN, Surveillance VLAN, Protocol VLAN, GVRP
Spnning Tree Protocol

STP/RSTP/MSTP, BPDU Filter, BPDU Guard, Edge Port
LLDP

LLDP, LLDP MED
Multicast

IGMP Snooping, IGMP V1/V2/V3, Router Port, Static IGMP group address, IGMP groups
filtering, Querier, MLD Snooping, MVR
Quality of Service (QoS)

Traffic classification based, Strict priority and WRR, Port Priority, 802.1P Priority, IP TOS
Priority, IP DSCP Priority, Supports up to 8 queues per port, Priority Remarking
