Parameters

• Model number

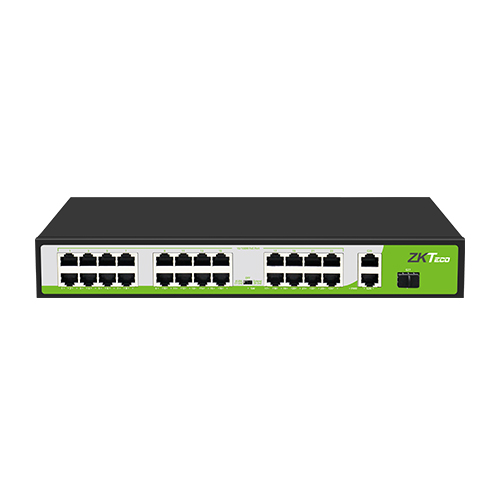

  PE242-300-C

• Port

  24*10/100M RJ-45(PoE) +2*10/100/1000 RJ-45+ 1*1000 SFP

• Network Protocol

  IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at

• POE Standard

  IEEE802.3af /IEEE802.3at

• PoE Consumption

  Max 15.4 W (IEEE 802.3af )/30 W (IEEE 802.3at)

• PoE Compatibility

  IEEE 802.3af/at self-adaptation

• Output Voltage

  DC48V

• PoE Power Supply

  1/2+; 3/6-; 4/5+, 7/8- (Option)

• Network Cable

  10Base-T: Cat3 UTP/STP(≤100m)
  10Base-T: Cat6a UTP/STP(≤250m)
  100Base-TX: Cat5e UTP/STP(≤100m)

• Backplane Bandwidth

  10.8Gbps

• Packet Forwarding Rate

  Each port 0.1488Mpps/ 1.488Mpps

• Buffer Memory

  2.7M

• MAC Size

  4K

• Switching

  Store-and-Forward

• Power Consumption

  300W

• Light Indicator

  PWR: Power indicator light: On: Power-on
  PWR: Power indicator light: Off: Power- off

  SW: Dial light: Off: Normal mode
  SW: Dial light: On: VLAN mode
  SW: Dial light: Flash: Extend mode

  1-6: Link light: On: Link connection
  1-6: Link light: Flash: Data transfer
  1-6: Link light: Off: Link failure

• Environment

  Operating Temperature: -20°C to 55°C
  Storage Temperature: -40°C to 80°C
  Operating Humidity: Max 90%, non-condensing
  Storage Humidity: Max 95%, non-condensing

• Dimensions (L*W*H)

  320*207*45(mm)

• Net Weight

  2.0kg
