Home> Product Center > Smart Entrance Control > Smart Terminal > Video Surveillance > Accessories > POE Switch >PE242-300-G

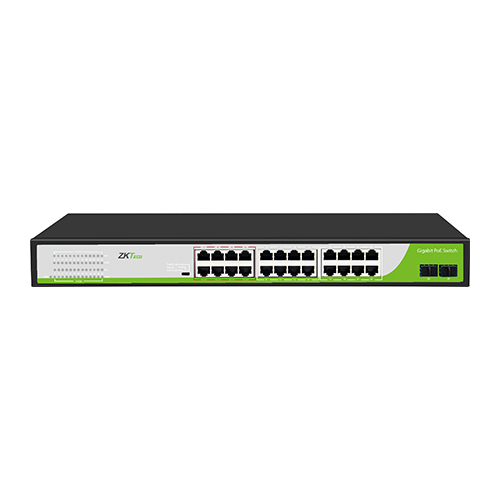

PE242-300-G

• 24*10/100/1000M PoE Ports +2*gigabit SFP Ports (10/100/1000 Mbps self-adaptation)

• Conforms to IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z

• Comply with IEEE802.3at (30W) and IEEE802.3af (15.4w)

• Support RJ45 Auto-MDI/MDIX

• With panel indicator for monitoring status and failure analysis

• Support dialing VLAN, Default and Extend Mode

• With Port 1 to 8 for QoS data priority

• 2KV/1KV (common mode/differential mode) Surge Protection to protect from the sudden lightning surge in harsh environment

Enquire Now PE242-300-G

Wish List

Compare

Copy Link to Share

Features Parameters Download Related Products Related Solutions Related Cases Others

Parameters

Model

PE242-300-G
Port

24*10/100/1000M PoE ports+ 2 gigabit SFP ports
Switching Capacity

52Gbps
Packet Forwarding Rate

38.68Mpps
Internal Cache

4M
MAC Address Table

8K
Jumbo Frames

9.6Kbytes
Forwarding Mode

Store-and-Forward switching
Standards

IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x

IEEE802.3af（15.4W）
IEEE802.3at（30W）

10Base-T: Cat3/Cat4/Cat5/Cat5e UTP/STP(≤100m)
100Base-TX : Cat5/Cat5e UTP/STP(≤100m)
1000Base-TX : Cat5/Cat5e UTP/STP(≤100m)
Multimode fiber: 50/125、62.5/125、100/140um
Monomode fiber: 8/125、8.7/125、9/125、10/125um
Power Supply

AC100-240V/50-60Hz
Operating Temperature

-20~50°C
Storage Temperature and Humidity

-40~85°C
Operating Humidity

10%~90%, non-condensing
Storage Humidity

5%~90%, non-condensing
Dimensions (L*W*H)

440*205*44(mm)
Package Dimension (L*W*H)

500*290*85(mm)
Net Weight

2.82kg
Gross Weight

3.38kg
