Parameters

• Model

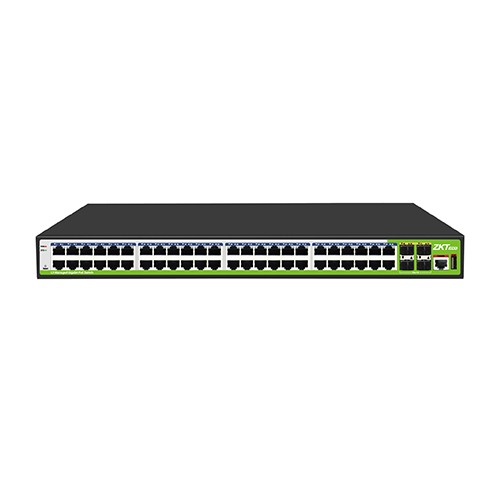

  PE484S-400-M-G

• I/O Interface

• Power

  Input: AC 100-240V, 50-60Hz

• Ethernet

  48*10/100/1000Mbps POE Ports (Ports 1-4 support BT Power Supply)
  4*10G SFP+ Ports
  1*RJ45 Console Port
  1*USB Serial Port

• Performance

• Switching Capacity

  176Gbps

• Packet Forwarding Rate

  131Mpps

• Flash Memory

  32MByte

• Buffer Memory

  16Mbit

• DDR SDRAM

  512MByte

• MAC Address

  32K

• Jumbo Frame

  12Kbytes

• MTBF

  100,000 hours

• VLANs

  4096

• Standard

• Network Protocol

  IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE802.3x, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X

• Protocol

  PoE Protocol: IEEE802.3af (15.4W), IEEE802.3at (30W), IEEE802.3bt (90W)

• Industry Standard

  EMI: FCC Part 15 CISPR (EN55032) class A,
  EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)

• Network Medium

  10Base-T: Cat3, 4, 5 or above UTP(≤100m)
  100Base-TX: Cat5 or above UTP(≤100m)
  1000Base-TX: Cat5 or above UTP(≤100m)

• Safety certificate

  CE, FCC, RoHS

• Environment

• Operating Temperature

  -10 to 50°C

• Storage Temperature and Humidity

  -40 to 70°C

• Operating Humidity

  10% to 90%, non-condensing

• Storage Humidity

  5% to 95%, non-condensing

• Function Indication

• Indicator

  PWR (Power Indicator), SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator)

• Physical Specification

• Structure Size

  Product Dimensions: 440*360*44.5mm
  Package Dimensions: 580*440*120mm
  Product N.W: 5.49KG
  Product G.W: 6.85KG

• Power Voltage

  Operating Voltage: AC100-240V 50-60Hz
  Power Supply: 52V 7.69A

• Power Consumption

  POE: POE Total Power<400W
  Power Consumption: Machine<67.5W

• Package List

  Switch: 1 set, instruction manual: 1 set, certificate of quality: 1 set, power cord: 1 set, serial
  cable: 1 set, mounting ear: 1 pair

• L3 Function

• IPv4

  IPv4 VLAN Interface, IPv4 Static Routes, ARP

• IPv6

  IPv6 VLAN Interface, IPv6 Static Routes, IPv6 ND

• L2 Function

• Port

  Port Switch, Port Description, Port Speed, Port Duplex, Port Flow Control, Jumbo(Up to
  10K), EEE, Fiber Module(DDM)

• Link Aggregation

  Supports load balance policy; Base on MAC and IP-MAC, Static and Dynamic Group,
  Supports LACP, Up to 8 groups

• Storm Control

  Broadcast, Unknown Multicast, Unknown Unicast

• Port Mirroring

  One to one monitor, Many to one monitor, Ingress/Egress/Both, Up to 4 session groups

• Port Security

  MAC Address Constraints, Port Security MAC Address, Protect/Restrict/Shutdown

• VLAN

  Access/Trunk/Hybrid, VLAN Tunnel (Q-in-Q Tunnel), Congurable VID from 1 - 4094; Max.
  256 static VLAN groups, Voice VLAN, MAC VLAN, Surveillance VLAN, Protocol VLAN, GVRP

• Spnning Tree Protocol

  STP/RSTP/MSTP, BPDU Filter, BPDU Guard, Edge Port

• LLDP

  LLDP, LLDP MED

• Multicast

  IGMP Snooping, IGMP V1/V2/V3, Router Port, Static IGMP group address, IGMP groups
  filtering, Querier, MLD Snooping, MVR

• Quality of Service (QoS)

  Traffic classification based, Strict priority and WRR, Port Priority, 802.1P Priority, IP TOS
  Priority, IP DSCP Priority, Supports up to 8 queues per port, Priority Remarking
