ZKX6550

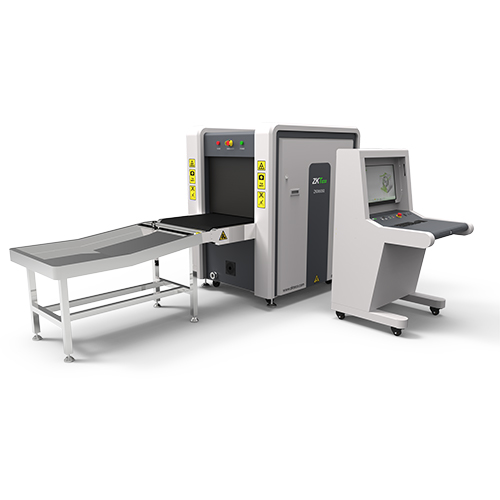

ZKX6550 X-ray Inspection System features a tunnel opening of 650 mm (W) x500 mm (H) and is designed for scanning briefcases, carry-on luggage, and small cargo packages, its equipped with a movable console to enhance work efficiency and operator comfort, allowing it to be placed in factories, shopping malls, transportation hubs, and similar locations.

The ZKX6550 X-ray Inspection System uses reliable, high-quality X-ray generators and detectors, as well as superior image algorithms, to provide clear scanning images. This allows operators to visually identify potential threat items.

Parameters

General Specifications
Tunnel Dimensions (W*H)

650mm * 500mm
Conveyor Speed

0.20 m/sec
Conveyor Load

120kg (Adequate distribution) (Max. Load)
Conveyor Height

650mm
Detector

Dual-energy Detector
View

Single-view
Supported Software

ZKBio SIS
Communication Interface

RJ45(TCP/IP)
Dimensions (L*W*H)

2120mm * 980mm *1381mm
Console Dimensions (L*W*H)

747mm * 706mm * 1279mm
Package Dimensions (L*W*H)

2395mm * 1195mm * 1680mm
Console Package Dimensions (L * W * H)

890mm * 840mm * 1502mm
Gross Weight

680kg+140kg (Console) (with Package)
Net Weight

560kg+100kg (Console)
Film Safety

ASA/ISO1600
Certifications

CE-EMC, CE-MD, FCC sDOC, FDA
X-ray Generator & Image Performance
Anode Voltage

140kV
Tube Current

0.5mA
Wire Resolution

36AWG
Steel Penetration

30mm
Spatial Resolution

HorizontalΦ1.6mm/VerticalΦ1.3mm
Penetration Resolution

32AWG
Generator Cooling

Sealed Oil Bath with Forced Air
Beam Direction

Vertically Upward
X-ray converter type

L-shaped Detector Line
Computer Specification
Operating System

Windows 10
Processor

N100
RAM

8GB
Hard Drive

128GB SSD + 2TB HDD
Max. Storage

Up to 200,000 Scanned Images
Monitor

21.5"Color LED Screen (1920*1080P)
Operating Environment
System Power

220 VAC +/- 10% 50/60Hz
110 VAC +/- 10% 50/60Hz
Power Consumption

< 300W
Noise Level

< 58dB(A)
Operating Temperature

-10°C to +45°C
Storage Temperature

-20°C to +60°C
Working Humidity

5-95%, Non-condensing
Health & Safety
Radiation Leak Dosage

< 0.5μSv/h (10cm From the Surface)
Compliant with Radiation Safety Standards (< 5μSv/h ) for Cabinet X-ray Systems
