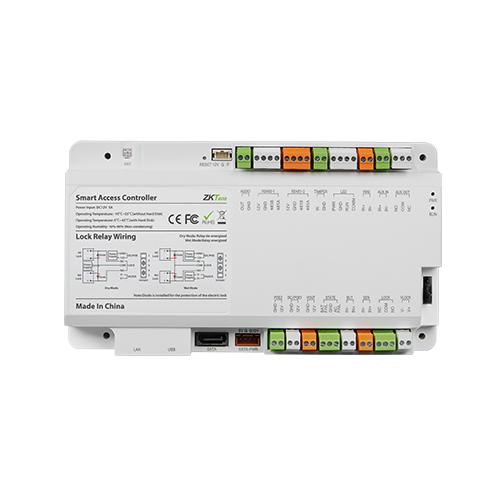

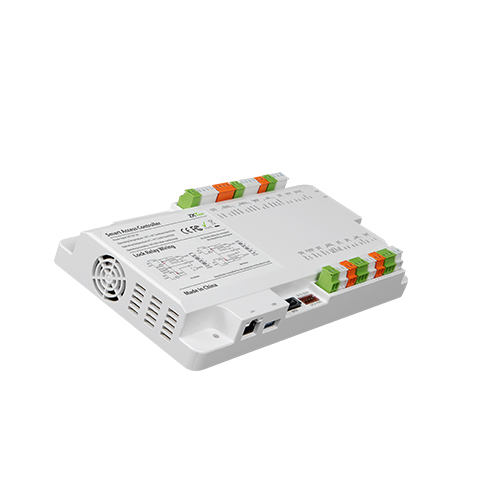

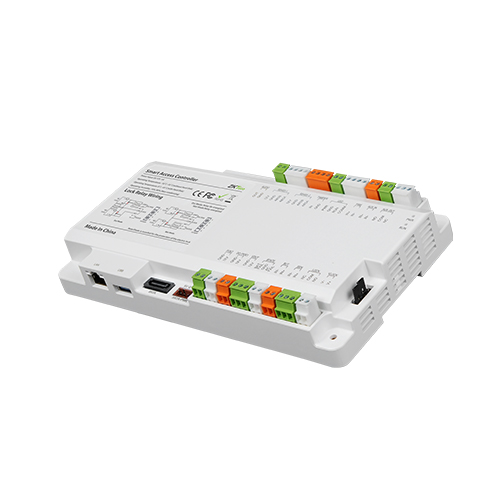

Parameters

• Model

  CVEdge 160

• Operation System

  Linux

• Hardware

  CPU: Quad Core with max. clock rate 1.5GHz
  RAM: 2GB
  eMMC: 16GB
  Compute Power: 4 Tops

• Authentication Method

  Face / Fingerprint / RFID / QR code (static) / Password

• Access Point Capacity

  Onboard Access Point: 1
  Scalabe Door Control Points: up to 16
  via ZKTeco's DE10 door unit OR
  via Primary-Secondary mode

• Type of Reader Supported

  RS-485: ZKTeco RS-485 Protocol / OSDP (Version 2.1.7)
  Wiegand: 26 / 34 / 66-bit (via WR485)

• IO Expansion Board Capacity

  8pcs EX0808 (RS-485 connection)

• User Capacity

  5,000(Optional: 100,000)

• Card Capacity

  5,000 (1: N) (Standard) Optional: 100,000 (1:N)

• Fingerprint Template Capacity

  10,000 (1: N) (Standard) Optional: 20,000 (1:N)

• Facial Template Capacity

  5,000 (1:N) (Standard)

• QR Code Capacity

  5,000 (Static QR Code) ; Optional: 100,000

• Transaction Capacity

  300,000

• Fingerprint Authentication Speed

  less than 0.5sec (Fingerprint)

• False Acceptance Rate (FAR) %

  FAR 0.0001% (Fingerprint)

• Fingerprint Authentication Algorithms

  ZKFingerprint Algorithm V13.0 (Default) / V10.0

• False Rejection Rate (FRR) %

  FRR 0.01% (Fingerprint)

• Number of Inputs

  1* Exit Button, 1* Door Status, 1 * AUX Inputs,1* Tamper,1* Fire Alarm;or 64 (with 8pcs of EX0808 IO expansion board)

• Number of Outputs

  1* Form C Relay for Lock, 1* Form C Relay for Aux Output,1* Audio output;or 64 (with 8pcs of EX0808 IO expansion board)

• Max. Card Number Length

  16 digits

• QR Code

  Standard QR code (Static)

• Communication

  TCP/IP * 1
  RS-485: ZKTeco RS-485 / OSDP (Optional) * 2
  USB 3.0: Type A (USB Drive Only) * 1
  SATA: (3.5" SATA HDD, up to 20TB) * 1
  Wi-Fi: IEEE 802.11 b/n/g @ 2.4 GHz ; AP mode
  Aux Inputs * 1, Aux Outputs * 1, Electric Lock * 1, Door Sensor * 1, Exit Button * 1, Alarm * 1, Tamper * 1, Audio out * 1

• Standard Functions

  Webserver, Up to 23-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Anti-tailgating, Linkage, Global Linkage, Multiple Authentication Methods, Power Detection, LED Status Output, Primary-Secondary Mode, SIP Server (Up to 8 SIP devices).

• Access Control Interface

  RS-485 (RS-485 Card Reader / Fingerprint Reader / QR code Reader);
  ZKTeco WR485 converter W26 / W34 / W66 reader

• Intelligent Video Analytics (IVA)

• Audio and video

  Video Channel: 4
  Decoding Format: H.264/H.265;
  Split Screen: 4;
  Decoding Capacity: 4;
  Synchronized Playback Channels: 4;
  Maximum video resolution: 8MP/5MP/3MP/1080P/960P/720P/D1VGAV4CIF/DCIF/2CIF/CIF/OCIF

• Absent Detection (Standard)

  Absent detection, Detects employee absence from designated stations.
  Configurable: zone occupancy count, motion sensing, time threshold. Alarm triggered when absence duration exceeded

• Cross-line Count (Standard)

  Cross line statistics(target counting)
  Configurable detection lines within zones count targets crossing in/out. Supports flow statistics alarm (triggers when count reaches threshold within statistical interval) and cumulative statistics alarm (triggers when total count reaches threshold over defined period). Countable targets: person, motor vehicle, non-motor vehicle

• Object Detection (Standard)

  Supports missing object detection, abandoned object detection, and object removal / abandonment detection

• Area Detection (Standard)

  Monitors zone entry, exit, entry / exit, loitering, and intrusion (persistent alarm on zone breach)

• Tripwire Detection (Standard)

  Triggers when persons, motor vehicles, or non-motor vehicles cross designated lines

• Anti-Tailgating (Standard)

  Validates single-person entry during access authentication. Video intrusion detection counts individuals in the verification zone-door unlocks only when exactly one person is detected. Door remains locked if count exceeds one or no person is detected

• Video Structured Search (Coming soon)

  Fast recorded video search based on on customizable criteria by person attributes (gender, age, clothing color, eyewear, mask, headwear) or vehicle attributes (licence plate number, licence color, vehicle type/color)

• Optional Detection

  Spark & Smoke Detection, Safety Hat Detection, Bear Detection, Pose Detection (Hands-up Duress mode), Pose Detection 3D(Fall Detection)

• General

• Power Supply

  DC 12V 5A

• Operating Temperature

  -10℃ to 55℃ (Without Hard Disk)
  0℃ to 45℃(With Hard Disk)

• Operating Humidity

  10% to 90% RH (Non-condensing)

• Dimensions

  200mm*111mm* 32mm (L*W*H)

• Gross Weight

  0.55 Kg

• Net Weight

  0.35 Kg

• Ingress Protection Rating

  N/A

• Supported Software

  On-board web console

• Installation

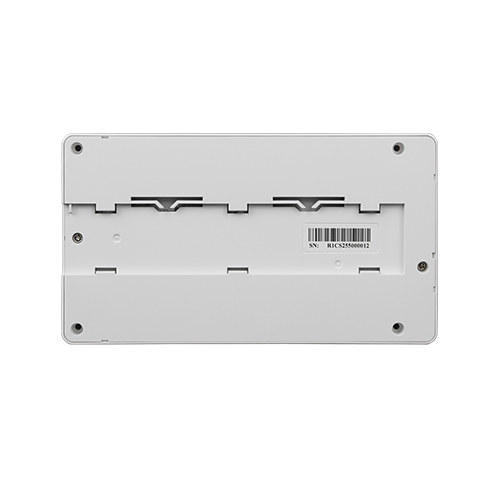

  Supported DIN35 Rail / Wall mount /Metal Enclosure (Optional)

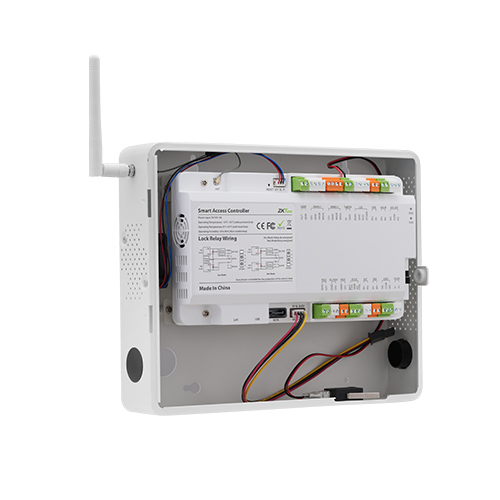

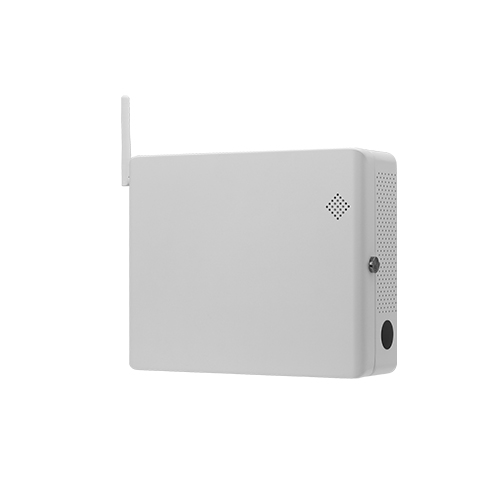

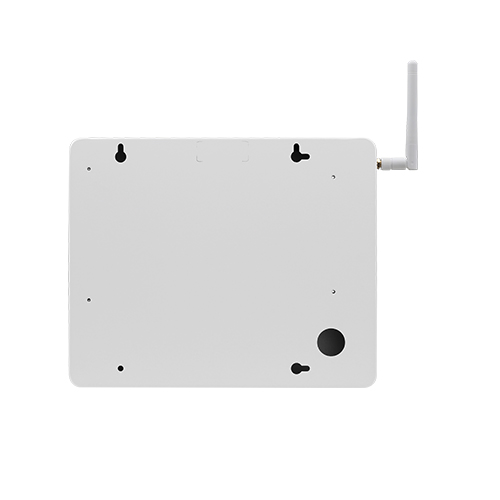

• Enclosure (Optional)

  Size: 242mm*197mm*72mm (L*W*H)
  Material: SPCC steel
  Net Weight: 2.12 kg (without hard disk)

• Certifications

  ISO14001, ISO9001, CE, FCC, RoHS

• Factory ID

  AC02-CB41H-42
