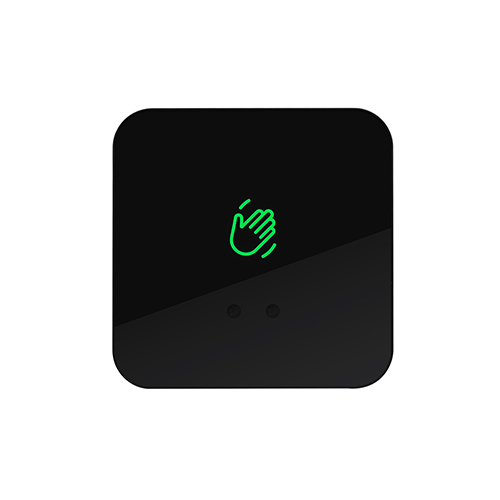

The TLEB201 / TLEB201M Series is a precision-engineered non-contact infrared exit switch designed for modern access control systems. Utilizing advanced infrared sensing technology, both models enable secure and hygienic door release through a simple wave of the hand, eliminating physical contact and significantly reducing the risk of cross-contamination.
Engineered for reliability and ease of integration, the series offers two distinct options to meet different installation requirements: the TLEB201 with Equivalent to IP67 waterproof protection in durable ABS construction, and the TLEB201M featuring a refined aluminum alloy housing for enhanced aesthetics and robustness. Both models deliver stable performance across a wide temperature and humidity range, making them ideal for commercial offices, healthcare facilities, educational institutions, public buildings, and other access control applications.
Model
TLEB201
TLEB201M
Dimensions (L*W*D)
TLEB201 (Black): 86 × 86 × 14 mm

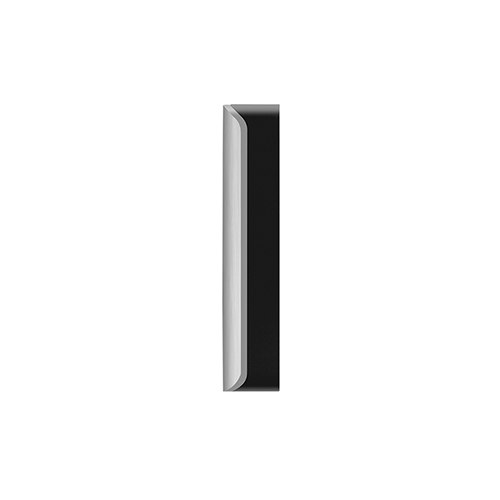

TLEB201M (Silver): 86 × 86 × 16 mm
Power Supply
DC 12–24 V
Material

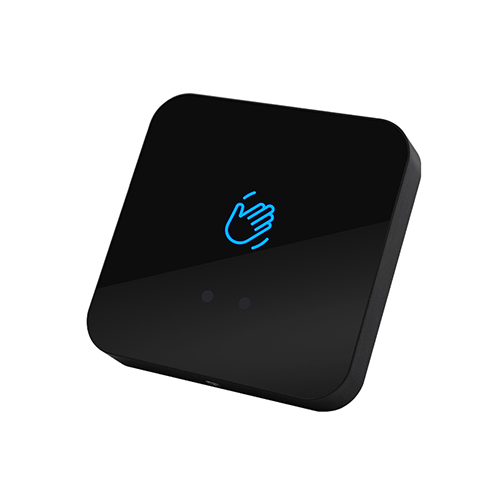

TLEB201 (Black): ABS

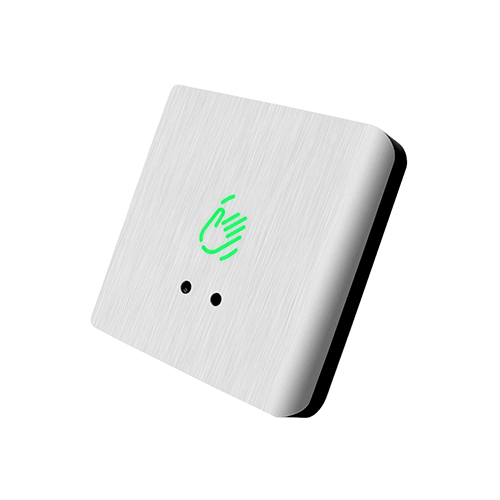

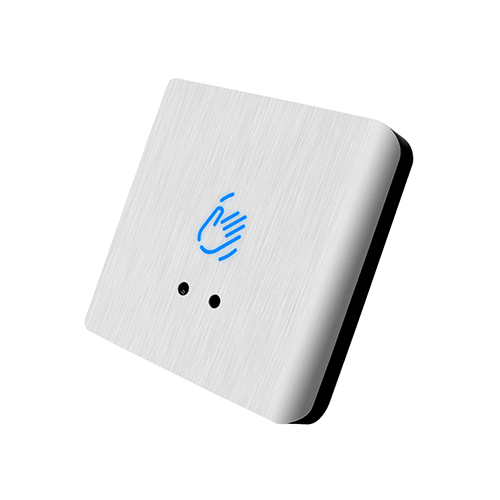

TLEB201M (Silver): Aluminum alloy housing + plastic base plate
IP Rating
TLEB201 (Black): Equivalent to IP67
TLEB201M (Silver): -
Signal Output
NO / NC / COM
LED Indication

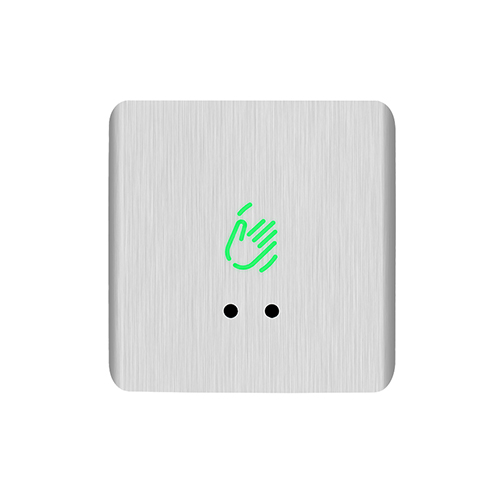

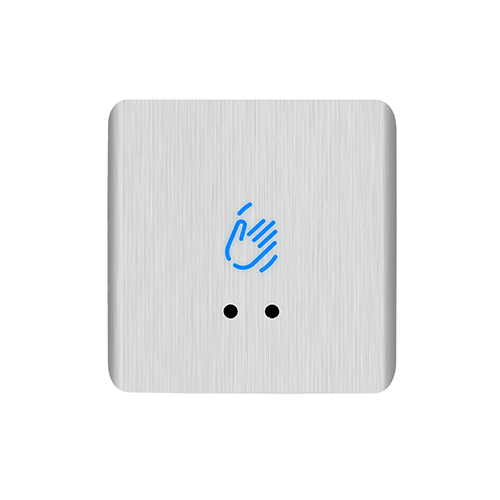

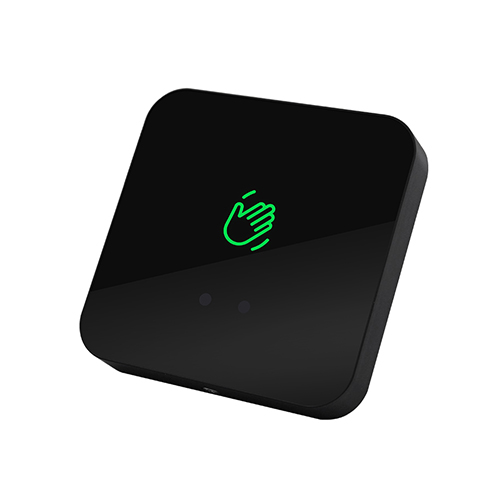

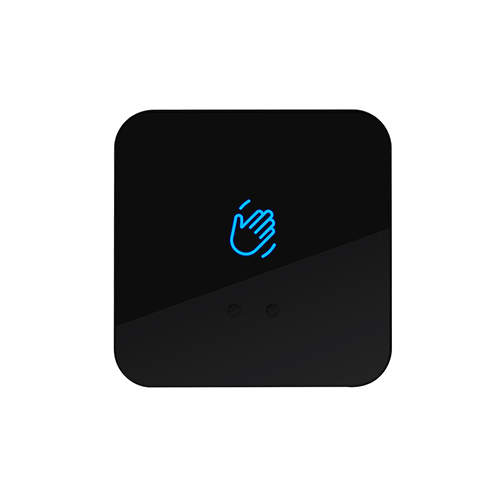

Blue (Standby) / Green (Triggered)
Operating Temperature
−20 °C to +55 °C
Operating Humidity
0 % – 95 % RH
Mechanical Life
100,000 cycles
Certifications
CE, FCC
Package Weight
TLEB201 (Black): 0.084 kg
TLEB201M (Silver): 0.093 kg
(Silver and above members can download after logging in)
TLEB201&TLEB201M_Datasheet_20260819
Datasheet
446.49KB
2026-08-24
