Parameters

• Basic

• Model number

  XL600-C-100

• Standards

  YD/T1019-2013; ISO/IEC 11801; ANSI/TIA/ETA 568-B*

• Wires Specs

  4 * 2 * 0.55(mm)

• Operating Temperature

  -20°C t o +60°C

• Material

• Conductor

• Material

  Copper-clad aluminium

• Diameter

  1/0.55±0.01mm

• Wire Gauge

  23AWG

• Insulation

• Material

  HDPE

• Diameter

  1.0mm±0.05mm

• Avg.Thickness(mm)

  0.19

• Min.Thickness(mm)

  0.17

• Appearance Color

  Blue, White/Blue; Orange, White/Orange;Green, White/Green; Brown, White/Brown

• Separator

• Material

  PE

• Specification

  Translucent 4.3mm* 0.35mm

• Filler

• Material

  Nylon

• Jacket

• Material

  PVC

• OD

  6.3mm±0.30mm

• Avg.Thickness

  0.5mm

• Min.Thickness

  0.4mm

• Electrical

• Conductor Resistance

  ≤9.38Ω/100M at 20°C

• Insulation Resistance

  ≥ 5,000 MΩ·km at 20°C

• Dielectric Strength

  No Breakdown with 1000V DC for 1min

• Delay Difference

  ≤45ns

• Frequency

  Up to 250 MHz

• Mechanical

• Insulation Elongation at Break

  ≥300%

• Insulation Tensile Strength

  ≥16 Mpa

• Jacket Elongation at Break

  ≥150%

• Jacket Tensile Strength

  ≥13.5 Mpa

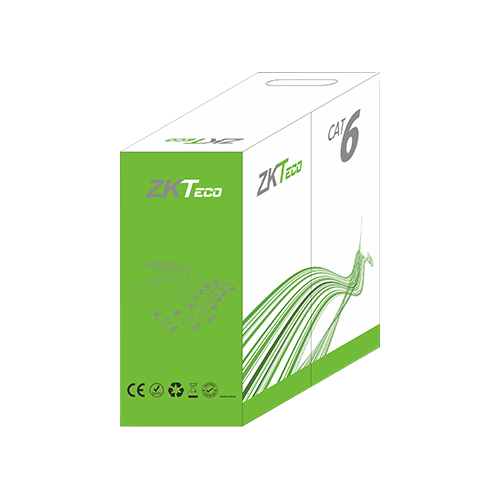

• Package

• Packing

  Pull box

• Length

  100m

• Rip Cord

  Yes

• Drain wire

  N/A

• Carton (L*W*H)

  288*288*128 (mm)

• Ordering Information

• Product Type

  CAT 6 Cable

• Part Number

  XL600-C-100

• Description

  CAT 6; 4*2*0.55, OD6.3mm±0.30mm
