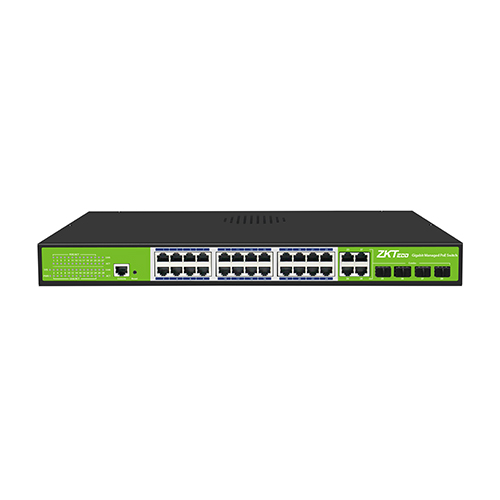

PE244S-400-M-G

• 24*Gigabit auto-sensing POE Ports, 4*Gigabit Combo RJ45 Ports, 4*Gigabit SFP Ports, 1*RJ45 Console Port;

• Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);

• Support IEEE802.3/IEEE802.3i/IEEE802.3uIEEE802.3ab/IEEE802.3z, IEEE802.3af/at, store-and-forward;

• Ethernet port supports 10/100/1000M adaptive and POE functions;

• Panel indicator monitoring the status and help failure analysis;

• Supports 802.1x port authentication, AAA authentication, and ACACS+ authentication;

• Supports WEB, TELNET, CLI, SSH, SNMP, and RMON management;

• Surge Protection: Common mode 6KV, Differential 2KV, ESD 8KV air, 6KV contact.

Parameters

Model

PE244S-400-M-G
I/O Interface
Power

Input: AC 100-240V, 50-60Hz
Ethernet

24*10/100/1000Mbps PoE Port
4*1000Mbps RJ45 Ports (Combo)
4*1000Mbps SFP Ports (Combo)
1*RJ45 Console Port
Performance
Switching Capacity

56Gbps
Packet Forwarding Rate

41.66Mpps
Packet Buffer

4Mbit
Flash Memory

16MByte
DDR SDRAM

128MByte
MAC Address

8K
Jumbo Frame

9.6Kbytes
MTBF

100,000 hours
Transfer Mode

Store and Forward
VLANs

4096
Standard
Network Protocol

IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1q, IEEE 802.1x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w
Protocol

PoE Protocol: IEEE802.3af (15.4 W), IEEE802.3at (30 W)
Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Network Medium

10Base-T: Cat3, 4, 5 or above UTP(≤100m)
100Base-TX: Cat5 or above UTP(≤100m)
1000Base-TX: Cat5 or above UTP(≤100m)
Multi-mode Fiber: 50/125, 62.5/125, 100/140um
Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Safety certificate

CE, FCC, RoHS
Environment
Operating Temperature

-10 to 50°C
Storage Temperature and Humidity

-40 to 70°C
Operating Humidity

10% to 90%, non-condensing
Storage Humidity

5% to 95%, non-condensing
Function Indication
Indicator

PWR(Power Supply), SYS(System), 1-24 PoE&ACT (PoE), 1-24 Link&ACT(Link&Act), 25-28
Link(Link), 25-28 Act (Act)
Physical Specification
Structure Size

Product Dimension: 440* 280*44mm
Package Dimension: 500*365*85mm
N.W: 3.65kg
G.W: 4.36kg
Power Voltage

Input Voltage: AC 100-240 V
Power Supply: 52V7.69A
Power Consumption

Product Power: ≤ 20W
POE Power: ≤ 380W
Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair
(Selectable)
L3 Function
IPv4

IPv4 VLAN Interface, IPv4 Static Routes, ARP
IPv6

IPv6 VLAN Interface, IPv6 Static Routes, IPv6 ND
L2 Function
Port

Port Switch, Port Description, Port Speed, Port Duplex, Port Flow Control, Jumbo(Up to
10K), EEE, Fiber Module(DDM)
Link Aggregation

Supports load balance policy; Base on MAC and IP-MAC, Static and Dynamic Group,
Supports LACP, Up to 8 groups
Storm Control

Broadcast, Unknown Multicast, Unknown Unicast
Port Mirroring

One to one monitor, Many to one monitor, Ingress/Egress/Both, Up to 4 session groups
Port Security

MAC Address Constraints, Port Security MAC Address, Protect/Restrict/Shutdown
VLAN

Access/Trunk/Hybrid, VLAN Tunnel (Q-in-Q Tunnel), Congurable VID from 1 - 4094; Max.
256 static VLAN groups, Voice VLAN, MAC VLAN, Surveillance VLAN, Protocol VLAN, GVRP
Spnning Tree Protocol

STP/RSTP/MSTP, BPDU Filter, BPDU Guard, Edge Port
LLDP

LLDP, LLDP MED
Multicast

IGMP Snooping, IGMP V1/V2/V3, Router Port, Static IGMP group address, IGMP groups
filtering, Querier, MLD Snooping, MVR
Quality of Service (QoS)

Traffic classification based, Strict priority and WRR, Port Priority, 802.1P Priority, IP TOS
Priority, IP DSCP Priority, Supports up to 8 queues per port, Priority Remarking
