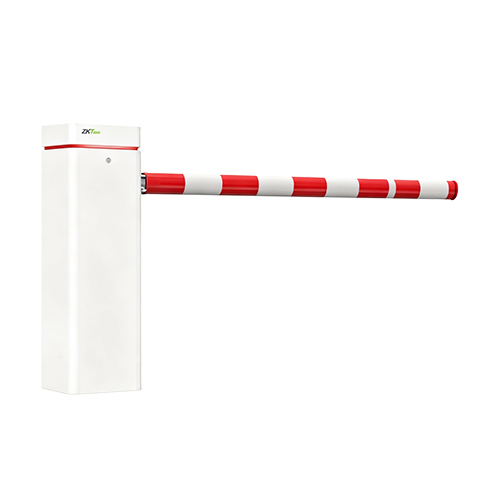

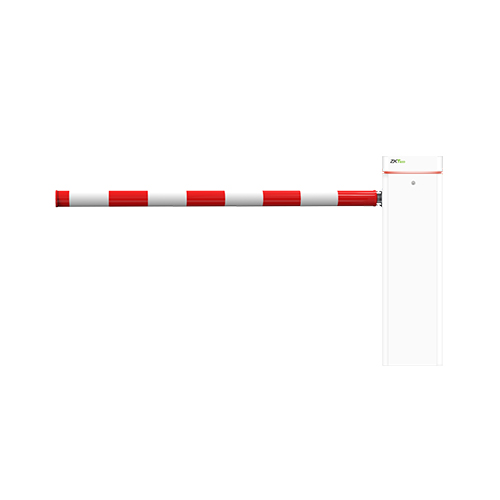

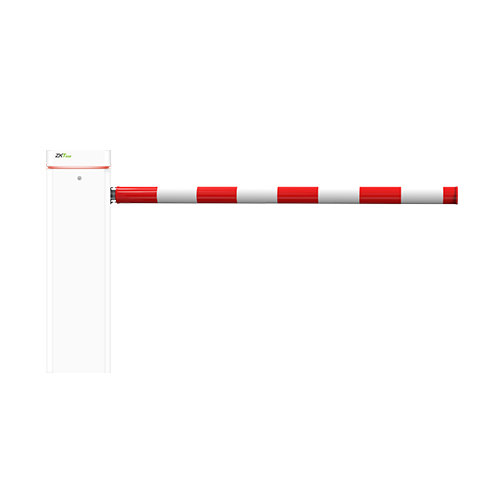

ProBG8000 Series

The ProBG8000 Series is a servo-driven parking barrier engineered for superior performance and longevity. Powered by a highly efficient and reliable servo planetary gear reduction motor, it delivers an impressive MCBF (Mean Cycles Between Failures) of up to 10 million operations, ensuring an exceptionally long service life. It features a built-in RGB interactive lighting system that supports a variety of colours and effects to clearly indicate operational status. The mainboard employs high-precision servo control, ensuring stable and reliable operation.

Designed for high-intensity traffic environments, the ProBG8000 Series is suitable for super shopping malls, commercial districts, tourist attractions, government agencies, residential apartments, factories, schools, hospitals and other solution.

Enquire Now ProBG8000 Series

Wish List

Compare

Copy Link to Share

Parameters

Model

ProBG8030L/R
ProBG8045L/R
Visual Indicator

LED stripe (7 Colour RGB, Customizable)
Breathing Red: Close
Flowing Green: Normal Use
Flashing Blue: Stand by
Display

N/A
Boom Type

Round straight boom
Boom Length

ProBG8030L/R: ≤3m Round straight boom
ProBG8045L/R: ≤4.5m Round straight boom
Boom Angle Adjustment

N/A
Motor Type

24V DC brushless servo motor
Motor Power

400W (peak / short-term)
Rated Power

260W
Operating Speed

0.3s~6s (opening/closing ; adjustable)
Chassis Material

2.0mm cold-rolled steel plate
Double-layer powder coated
Chassis Color

White
Barrier Boom Material

1.0mm aluminum alloy
Motherboard Function

Switch control, loop/infrared/radar detector control, anti-smash control, traffic light control,
Ethernet module (optional), Bluetooth module (optional)
Power Supply

Input: AC110V/220V±10% 50/60Hz
Output: DC24V 20A
Rated Input Current

<15A
Fire Signal

Dry-contact relay input (fire alarm linkage)
Motor MCBF

10 million
Weight

Net Weight (excluding the barrier arm) : 50kg
Chassis Dimension

370*325*1020mm
Operating Temperature

-40℃ ~ 80℃
Operating Humidity

<90% RH (non-condensing)
Certifications

CE, FCC (pending)
Ingress Protection Rating

IP54
Anti-collision

Digital anti-collision, infrared anti-collision, radar anti-collision, anti-collision loop detector,
auto-rebound, pole-off functions when in emergency
Product Delivery

≤15 days
Application Environment

Indoor/Outdoor/Semi-outdoor
Site Preparation

Flat & Level Finished Floor
Duty Cycle

100%
Remote Control Distance

≤50m
Rated Speed

850rpm
Rated Current

<20A
Operating Voltage

DC 24V
Warranty

2 years
